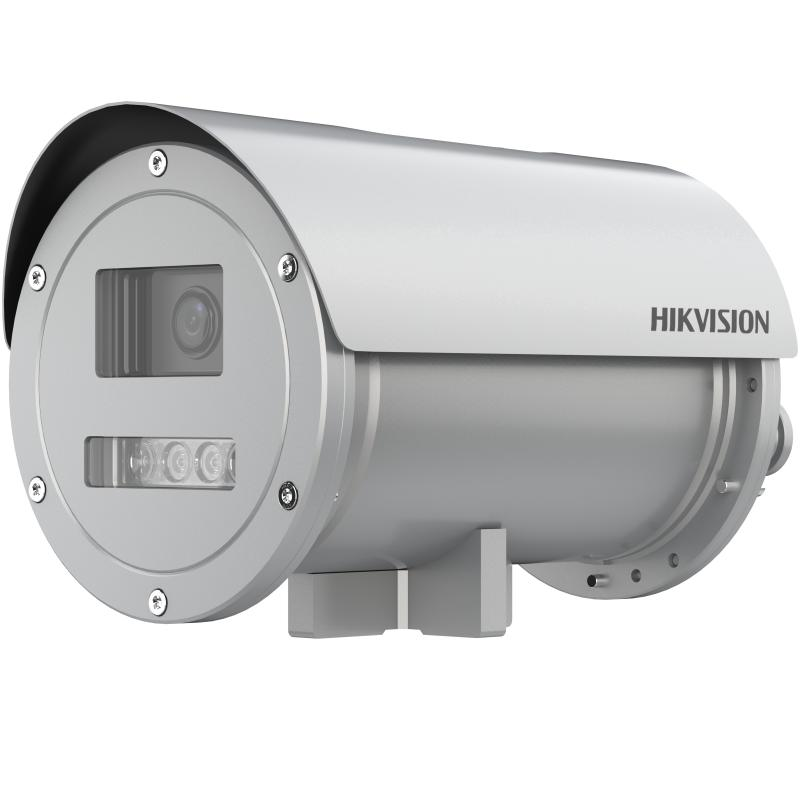

DS-2XE6885G0-IZHS(2.8-12mm)(B)
DS-2XE6885G0-IZHS(8-32mm)(B)
EXIR Motorized Varifocal Bullet Explosion-Proof Network Camera
- Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
- 316L stainless steel enclosure, protecting the camera from damage caused by sparks or corrosive materials
- IP68 water resistant, preventing water ingress for outdoor use
- H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
- 100 VAC to 240 VAC wide range power supply: easy to deploy cables and safer compared to a power adapter solution
Specification
Camera
- Image Sensor1/2″ Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.0009 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
Lens
- Lens TypeVarifocal lens, 2.8 to 12 mm and 8 to 32 mm optional
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47°
8 to 32 mm, horizontal FOV 42° to 15°, vertical FOV 23° to 8°, diagonal FOV 49° to 17° - Lens MountIntegrated
- FocusAuto, semi-auto, manual
- Iris TypeAuto-iris, DC drive
- Aperture2.8 to 12 mm: F1.4
8 to 32 mm: F1.7, constant F1.7 throughout the zoom range
DORI
- DORI2.8 to 12 mm: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m
8 to 32 mm: D: 580 m, O: 230.2 m, R: 116 m, I: 58 m
Illuminator
- Supplement Light TypeIR
- Supplement Light Range2.8 to 12 mm: up to 60 m
8 to 32 mm: up to 100 m - IR Wavelength850 nm
Video
- Main Stream50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) - Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480) - Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) - Fourth Stream50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480) - Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480) - Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.265 and H.264 encoding
- Region of Interest (ROI)5 fixed regions for each stream
- Target CroppingYes
Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+
Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger (-S), Video Trigger
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image StabilizationEIS
- Image EnhancementBLC, HLC, Defog, 3D DNR
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
- Video Output1 Vp-p Composite Output (75 Ω/BNC)
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) - On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. - Audio1 input (line in), terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium - Alarm 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)
- Fiber Optical1 fiber optical interface, single module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 155 Mbps transmission rate
Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))
Scene change detection, audio exception detection, defocus detection - LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output (-S model), trigger recording, trigger capture, audible warning
Deep Learning Function
- Hard Hat Detection Detects up to 30 human targets simultaneously
Supports up to 4 shield regions - MetadataMetadata of road traffic is supported
- Road Traffic and Vehicle DetectionBlocklist and allowlist: up to 10,000 records; Captures vehicle that has no license plate; Support license plate recognition of motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
General
- Power100 to 240 VAC, 0.4 A to 0.17 A, max. 18 W, terminal block;
PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W - MaterialStainless steel 316L & anti-corrosion coating
- Dimension352 mm × 200 mm × 214 mm (13.9″ × 7.9″ × 8.4″)
- Package Dimension438 mm × 283 mm × 303 mm (17.2″ × 11.1″ × 11.9″)
- WeightApprox. 14 kg (30.9 lb.)
- With Package WeightApprox. 15 kg (33.1 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, 5 streams and 5 custom streams, heartbeat, mirror, privacy mask, pixel counter
- HeaterYes
- Cable Length0.09 m (0.30 ft.)
Approval
- EMCFCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019)
RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015
IC: IC-VoC (ICES-003 Issue 7: 2020) - SafetyUL: UL 62368-1, CAN/CSA C22.2 No. 60950-1-07: 2014
UL: Class I, Zone 1, AEx db IIC T6 Zone 21, AEx tb IIIC T80 °C Ex db IIC T6 Gb X Ex tb IIIC T80 °C Db X
CB: IEC IEC 60079-0
CE: CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 - ProtectionIP68: IEC 60529-2013
- Explosion-Proof ProtectionATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68
IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68
For explosive gas atmospheres, the maximum surface temperature is 85 °C
For flammable dust atmospheres, the maximum surface temperature is 80 °C
IIC: for explosive gas atmospheres other than mines susceptible to firedamp
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22. - Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2014)
C5 (ISO 6270-1, ISO 9227)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
