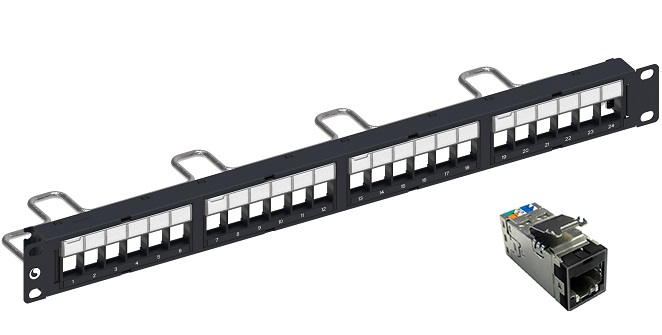

Patch panel 24 port COMMSCOPE CAT6A STP (760237046/ 2153449-2)

Patch panel 24 port COMMSCOPE CAT6A STP (760237046/ 2153449-2)

Part Number: 760237046/ 2153449-2

*) Patch panel 24 port CAT6A STP (760237046)

– Product Type: RJ45 patch panel

– ANSI/TIA Category: 6/6A

– Cable Type: Shielded

– Color: Black

– Modules: 0

– Panel Style: Straight

– Rack Type: EIA 19 in

– Rack Units: 1

– Total Ports: 24

– Material Type: High-impact, flame retardant, thermoplastic / Powder-coated steel

– Operating Temperature: -10°C to +60°C

– Storage Temperature: -40°C to +70°C

– Dimensions (HxWxD): 44.45 x 482.6 x 119.38 mm

*) Modular Jack COMMSCOPE CAT6A S/FTP (2153449-2)

– ANSI/TIA Category: 6A

– Cable Type: Shielded

– Color: Black

– Conductor Type: Solid/ Stranded

– Integrated Dust Cover Type: None

– Mounting: SL Series faceplates and panels

– Mounting Note: Color matches with SL-style Black Faceplates and Surface Mount Boxes

– Outlet Type: Standard

– Termination Punchdowns, minimum: 5 times

– Termination Tool: SL Termination tool

– Termination Type: IDC

– Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA

– Wiring: T568A/ T568B

– Contact Plating Thickness: 1.27 µm

– Compatible Conductor Gauge, solid: 26~22 AWG

– Compatible Conductor Gauge, stranded: 26~24 AWG

– Packaging quantity: 24
