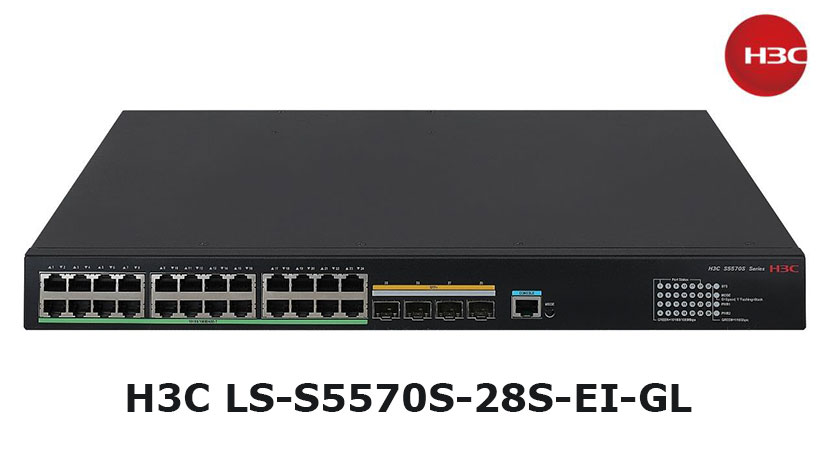

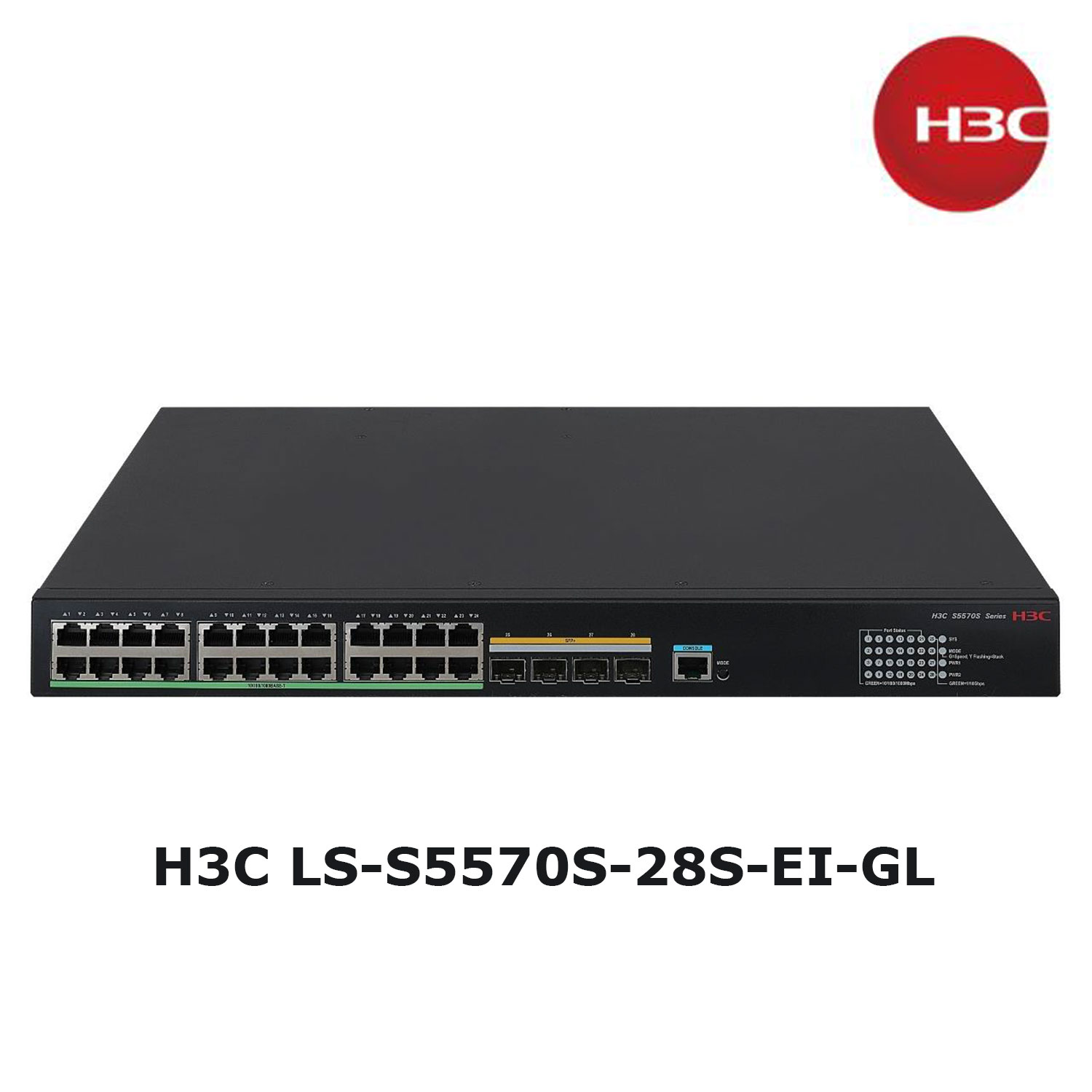

Switch 28 Port H3C LS-S5570S-28S-EI-GL
Tính năng nổi bật trên Switch H3C LS-S5570S-28S-EI-GL
* Tính năng phần cứng:
– 24 cổng RJ45 1G
– 4 cổng SFP+ 1G/10G
– Tốc độ chuyển mạch: 128Gbps
– Tốc độ chuyển mạch gói: 96Mpps
– Thiết kế: 2 quạt tản nhiệt, vỏ sắt, hỗ trợ lắp đặt tủ rack
– Nguồn cấp đầu vào: AC: 100 V to 240 V, 50/60 Hz | DC: -48V~-60V DC
– Nhiệt độ hoạt động: -5°C to 45°C
* Tính năng phần mềm:
– Port aggregation: GE/10GE port aggregation, Dynamic aggregation, Static aggregation, Cross-device aggregation
– Port Characteristics: Support IEEE 802.3x flow control (full duplex), Supports storm suppression based on port rate percentage, Supports PPS-based storm suppression, Support bps-based storm suppression
– MAC Address Table: Static MAC address, Blackhole MAC address
– VLAN: Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
– DHCP: DHCP Client, DHCP Snooping, DHCP Snooping option82, DHCP Relay, DHCP Server, DHCP auto-config
– IP Routing: IPv4 routing table, Static routing, RIPv1/v2 and RIPng, OSPFv1/v2 and OSPFv3, BGP/BGP4+ for IPv6, S-IS/IS-ISv6, Equal-cost multi-path routing (ECMP) and policy routing
– Multicast: IGMP Snooping V2/V3, PIM-SM/PIM-SSM/PIM-DM, MSDP, MLD Snooping, Multicast VLAN
– QoS: Port rate limit (receiving and transmitting), Packet redirection ,Committed access rate (CAR), Eight output queues on each port, Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR, 802.1p DSCP remarking, ToS(Type of Service), Best-effort service/ IntServ/DiffServ, 802.1p, DSCP, EXP
– Quản lý và bảo trì: Loading and upgrading through XModem/FTP/TFTP, Zero Touch Provisioning, Configuration through CLI, Telnet, and console port, SNMPv1/v2c/v3 and Web-based NMS, Restful, Python, RMON (Remote Network Monitoring) and groups 1,2,3 and 9, alarm event, and history recording, IMC NMS, System log, alarming based on severities, and output of debugging information, NTP, Ping, Tracert, Virtual cable test (VCT), Device link detection protocol (DLDP), Loopback-detection, Port auto power down, Energy Efficient Ethernet
* Thông số nổi bật:
– MAC: 32768 | VLAN: 4094
– IPv4 routing: 12288 | IPv4 ARP entries: 8192 | IPv4 ACL entries: Ingress:1280, Egress:512
– Max Stacking Members: 9 | Max Stacking Bandwidth: 80Gbps
