Cung cấp và lắp đặt Bộ chuyển đổi tín hiệu mạng CRAIG SECURITY NETWORK CS-7601TW chính hãng, giá rẻ tại Hải Phòng

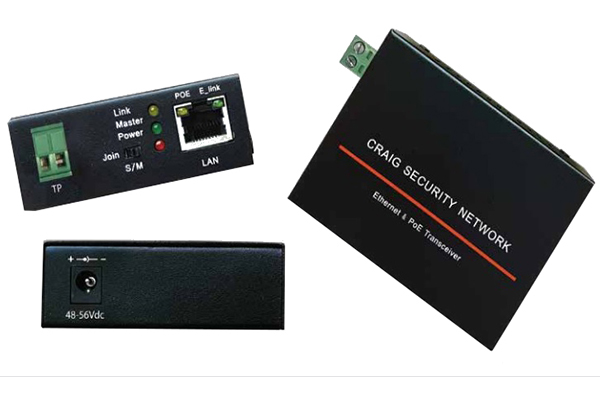

Bộ chuyển đổi tín hiệu mạng CRAIG SECURITY NETWORK CS-7601TW
– Ethernet & PoE over 2-Wires Transceiver.
– Transmit 10/100 BaseT Full Duplex Ethernet up to 600m over 2-Wires cable.
– 48-56Vdc is distributed over the 2-Wires to all connected equipment. Power support
– PoE, PoE+ or Ultra PoE Camera (or other PoE devices), up to 60 watts.
– 2-Wires transceiver at the network-end can support multiple remote transceivers /
– IP cameras by using Daisy Chain method.
– Easy configuration, no PC required.
– Plug and Play Technology.
Đặc tính kỹ thuật
Model | CS-7601TW |
Coaxial-line Interface | |
Standards | Base on up-to-date advanced IEEE P1901 for ethernet over 2-Wires Cable Application with raw data rates up to 90Mbps |
UTP Cable Device | CR700 / CR100 |
Connector | 2-Wire on device |
Line Rates | |
Phy Rate | Maximum Link Rates 90Mbps |
Ethernet Interface | |
Standards | ISO / IEC 802.3 (ANSI / IEEE 802.3i)10BASE-T Ethernet IEEE 802.3u , 100BASETx , Fast Ethernet IEEE 802.3ab 100BASE-T |
PHY Connection | TSZ7042 , 10BASE-T , 100BASE-T , With Auto-detect Auto MDIX |
Connector | 2-Wires Connector for 10BASE-T , 100BASE-Tx Ethernet Interface |
LED Indicators | |
RJ45-DATA | Data Link / Green |
RJ45-PoE | PoE On / Yellow |
Power | 48-56Vdc Link/Red |
Join | Link/Yellow |
Encryption | |
Encryption method | 128-bit AES Link Encryption with key management for secure. Power line communication |
IGMP | |
IGMP Protocol | Supports IGMP multicast sessions ToS , CoS and IP port number packet classification |
PoE | |
Standards | IEEE 802.3 at / af Both supports |
Maximum Power | Up to 60W |
System Power | |
Voltage | AC/DC Power adaptor , AC 90 ~ 260V , 50Hz / 60Hz , 48-56Vdc, 2A |
Agency Approval | |
AC Line Safety | UL 60950-1 and CE60950 for ITE Devices, CAS, TUV |
Emissions | FCC Part 15 Sub Part B for Class B |
Surge Protection | 4KV / 1.2 , 50 us , 2KA / 8, 20uS for AC/DC Adaptor |
Mechanical | |
Dimensions | With Bracket: 104 x 95 x 26mm Without Bracket : 104 x 70 x 26mm |
Weight | 180g |
Enviroment conditions | |
Operatiiong Temperature range | -20°~75°C |
Humidity Range | 10% ~ 90% |
Storage Temperature | -40 ~ 80 °C |
– Bảo hành: 12 tháng.
