Cung cấp và lắp đặt Cáp nhảy-Patch cord COMMSCOPE CAT5E U/UTP 1.2 mét (CO155D2-07F004) chính hãng, giá rẻ tại Hải Phòng

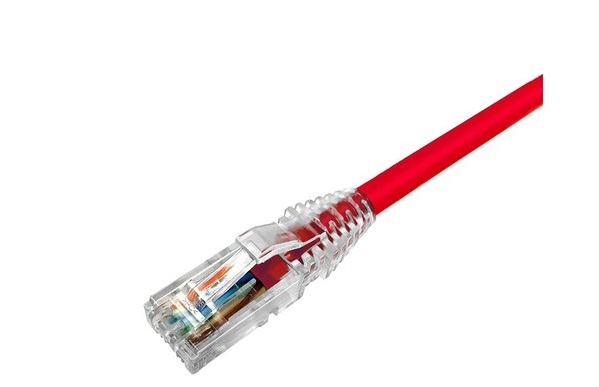

Cáp nhảy-Patch cord COMMSCOPE CAT5E U/UTP 1.2 mét (CO155D2-07F004)
– Part number: CO155D2-07F004
– Category 5e U/UTP Patch Cord, RJ45 to RJ45, 4-pair, Non-Plenum, 4FT, Red.
Đặc tính kỹ thuật
| General | |
| ANSI/TIA Category | 5e |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
| Dimensions | |
| Cable Assembly Length Range | 1.2m |
| Cable Assembly Length Range | 4ft |
| Diameter Over Jacket | 5.36 mm |
| Compatible Conductor Gauge, stranded | 24 AWG |
| Electrical | |
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
| Material | |
| Contact Plating Material | Gold in remating area | Nickel underplating |
| Material Type | Phosphor Bronze | Polycarbonate |
| Mechanical | |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 133 N | 29.9 lbf |
| Environmental | |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Flammability Rating | CM |
| Safety Standard | ETL | cETL |
