Cung cấp và lắp đặt Cáp quang Indoor Multimode 12 lõi OM3 COMMSCOPE 1-1859420-3 chính hãng, giá rẻ tại Hải Phòng

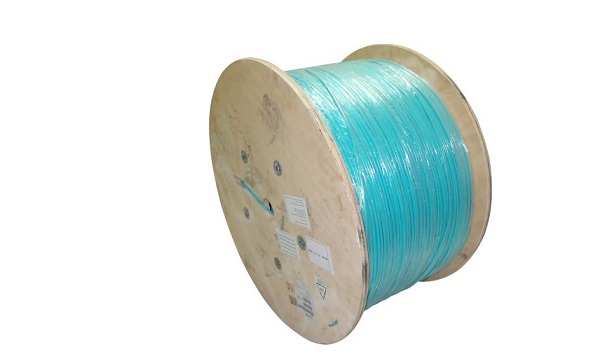

Cáp quang Indoor Multimode 12 lõi OM3 COMMSCOPE 1-1859420-3
Part Number: 1-1859420-3
– Indoor Fiber Optic Cable, 12-fiber, OM3, OFNR, 1000m.
Specifications
Product Classification
– Portfolio: NETCONNECT®
– Product Type: Fiber indoor cable
– Regional Availability: Asia
Construction Materials
– Jacket Color: Aqua
– Total Fiber Count: 12
Signal Characteristics
– Attenuation, maximum (1300nm): 1.50dB/km
– Attenuation, maximum (850nm): 3.50dB/km
– Overfilled Launch Bandwidth (Min) (1300nm): 500 MHz-km
– Overfilled Launch Bandwidth (Min) (850nm): 1500 MHz-km
Cable Ratings
– Bend Radius (Installation): 124mm.
– Bend Radius (Unloaded): 62mm.
– Tensile Strength (Installation): 660.00N.
– Tensile Strength (Long Term): 198.00N.
– Crush resistance: 1000N/10cm
– Weight (Nominal): 32 kg/km.
Dimensions
– Length: 1000m.
Operation/Application
– Environment: Indoor
Usage Conditions
– Installation Temperature Range: -10 – 60 °C
– Operating Temperature Range: -20 – 70 °C
– Storage Temperature Range: -40 – 70 °C
