Cung cấp và lắp đặt Cáp quang Indoor Multimode 4 lõi OM3 COMMSCOPE 2-1859417-3 chính hãng, giá rẻ tại Hải Phòng

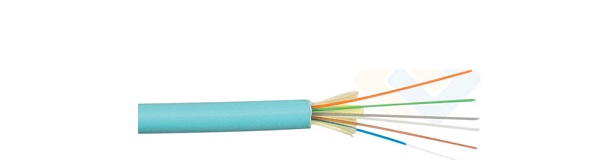

Cáp quang Indoor Multimode 4 lõi OM3 COMMSCOPE 2-1859417-3
Part Number: 2-1859417-3
– Indoor Fiber Optic Cable, 4-fiber, OM3, OFNR, 2000m.
Product Classification
– Portfolio: NETCONNECT®
– Product Type: Fiber indoor cable
– Regional Availability: Asia
Construction Materials
– Jacket Color: Aqua
– Total Fiber Count: 4
Body Features
– Bend Radius (Installation): 96.00 mm
– Bend Radius (Long Term): 48.00 mm
– Tensile Strength (Installation): 660.00 N
– Tensile Strength (Long Term): 198.00 N
– Weight (Nominal): 19.0 kg/km
Dimensions
– Length: 2000.00 m
Industry Standards
– Flammability Rating: OFNR (Riser) Jacket
Operation/Application
– Environment: Indoor
Product Type Features
– Cable Type: Fiber Optic
– Fiber Cable Buffering: Tight buffer
– Fiber Diameter: 50/125 µm
– Fiber Specification: TIA/EIA-598
– Fiber Type: OM3
– Optical Mode: Multimode
Signal Characteristics
– Attenuation, maximum (1300nm): 1.50 dB/km
Usage Conditions
– Installation Temperature Range: -10 – 60 °C
