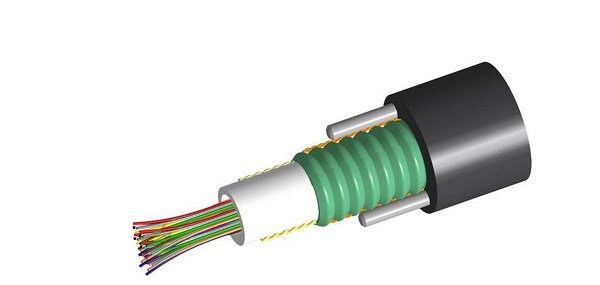

Cáp quang Outdoor 8 sợi Single mode COMMSCOPE (760003939)

Cáp quang Outdoor 8 sợi Single mode COMMSCOPE (760003939)

Part Number: 760003939

– Cáp quang đơn mốt 8 sợi quang, ngoài trời, có bọc giáp, PE.

Đặc tính kỹ thuật

General

– Armor Type: Corrugated steel

– Cable Type: Central loose tube

– Construction: Type Armored

– Fiber Type, quantity: 8

– Fibers per Subunit, quantity: 8

– Jacket Color: Black

– Subunit Type: Gel-filled

– Subunit, quantity: 1

– Total Fiber Count: 8

Dimensions

– Buffer Tube/Subunit Diameter: 4 mm

– Diameter Over Jacket: 11 mm

Material

– Jacket Material: PE

Mechanical

– Minimum Bend Radius, loaded: 165 mm

– Minimum Bend Radius, unloaded: 110 mm

– Tensile Load, long term, maximum: 800 N

– Tensile Load, short term, maximum: 2700 N

– Compression: 44 N/mm

– Compression Test Method: FOTP-41, IEC 60794-1 E3

– Flex: 35 cycles

– Flex Test Method: FOTP-104, IEC 60794-1 E6

– Impact: 2.94 N-m

– Impact Test Method: FOTP-25, IEC 60794-1 E4

– Strain: See long and short term tensile loads

– Strain Test Method: FOTP-33, IEC 60794-1 E1

– Twist: 10 cycles

– Twist Test Method: FOTP-85, IEC 60794-1 E7

– Vertical Rise, maximum: 607 m

Optical

– Fiber Type: G.652.D and G.657.A1, TeraSPEED®; G.652.D and G.657.A1, TeraSPEED®; OS2; OS2

Environmental

– Installation temperature: -30 °C to +70 °C (-22 °F to +158 °F)

– Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)

– Storage Temperature: -40 °C to +75 °C (-40 °F to +167 °F)

– Cable Qualification Standards: ANSI/ICEA S-87-640; EN 187105; Telcordia GR-20

– Environmental Space: Aerial, lashed; Buried

– Jacket UV Resistance: UV stabilized

– Water Penentration: 24 h

– Water Penentration Test Method: FOTP-82, IEC 60794-1 F5
