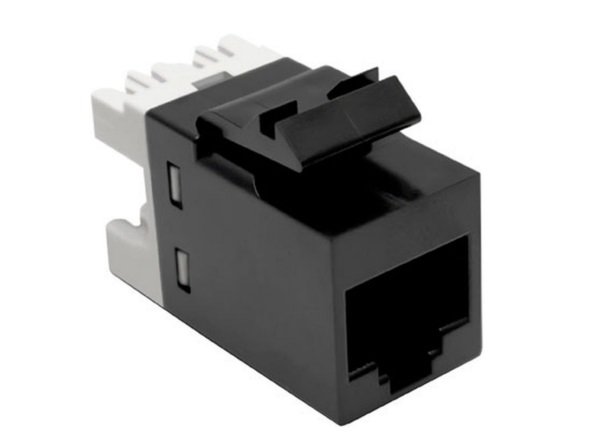

Modular Jack COMMSCOPE CAT5E 9-1375191-2
– SL 110 Series Modular jack, RJ45, Category 5e, unshielded, without dust cover, bag of 24, black.
Specifications
| General | |
| ANSI/TIA Category | 5e |
| Cable Type | Unshielded |
| Color | Black |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
| Mounting Note | Color matches with SL-style Black Faceplates and Surface Mount Boxes |
| Outlet Type | Standard |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 | SO/IEC 11801 Class D |
| Wiring | T568A | T568B |
| Dimensions | |
| Panel Cutout, recommended | 14.78 x 20.07 mm |
| Panel Thickness, recommended | 1.6 mm |
| Height | 16.26 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
| Compatible Insulated Conductor Diameter, maximum | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 24–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
| Electrical | |
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
| Safety Voltage Rating | 150 Vac |
| Material | |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Material Type | Polycarbonate |
| Mechanical | |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 89 N | 20.008 lbf |
| Environmental | |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | CSA | cUL |
