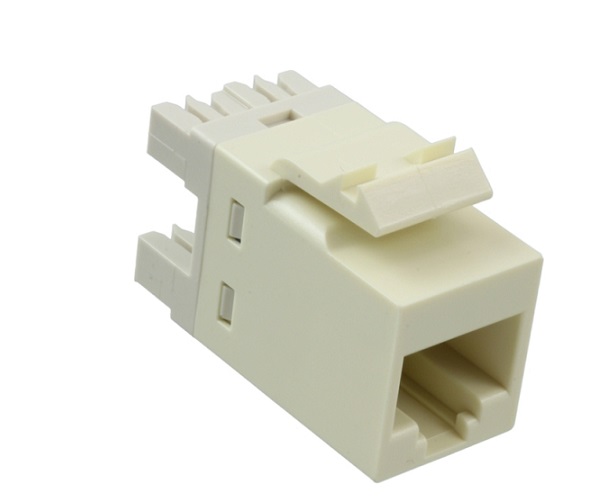

Modular Jack COMMSCOPE CAT5E UTP (1375191-1)

Modular Jack COMMSCOPE CAT5E UTP (1375191-1)

– Part Number: 1375191-1.

– ANSI/TIA Category: 5e.

– Cable Type: Unshielded.

– Color: Electrical ivory.

– Conductor Type: Solid: Stranded.

– Mounting: SL Series faceplates and panels.

– Mounting Note: Color matches with SL-style Ivory Faceplates and Surface Mount Boxes.

– Outlet Type: Standard.

– Termination Punchdowns, minimum: 200 times.

– Termination Tool: SL Termination tool.

– Termination Type: IDC.

– Transmission Standards: ANSI/TIA-568-C.2, ISO/IEC 11801 Class D.

– Wiring: T568A, T568B.

– Panel Cutout, recommended: 14.78 x 20.07 mm.

– Panel Thickness, recommended: 1.6 mm.

– Height: 16.26 mm.

– Width: 14.48 mm.

– Depth: 0.48 mm.

– Compatible Insulated Conductor Diameter, maximum: 1.45 mm.

– Contact Plating Thickness: 1.27 µm.

– Compatible Conductor Gauge, solid: 24–22 AWG.

– Compatible Conductor Gauge, stranded: 26–24 AWG.

– Operating Temperature: -40°C to +70°C.
