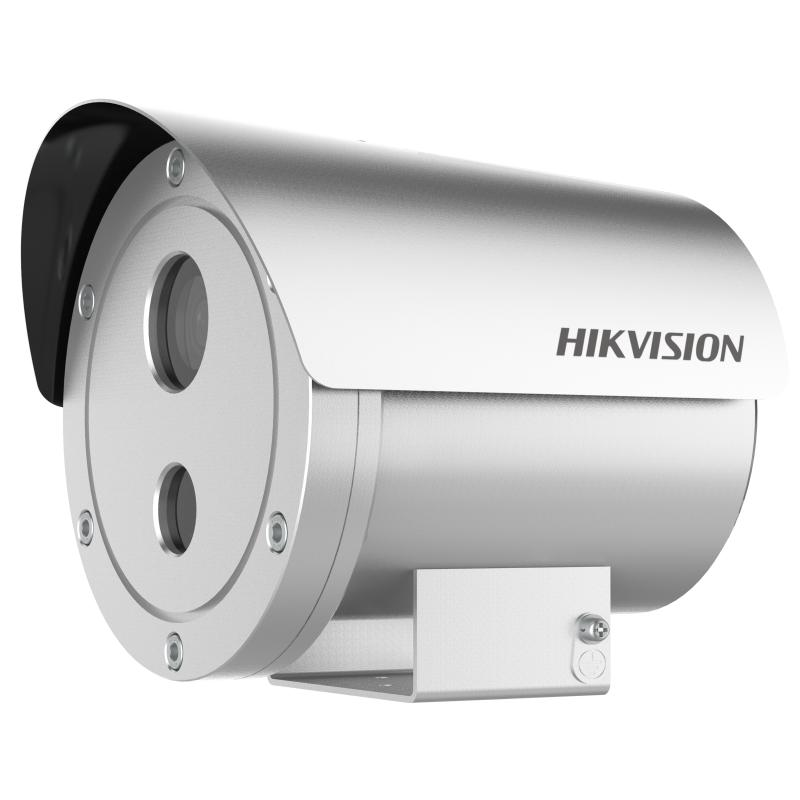

Camera IP chống cháy nổ DS-2XE6222F-IS
EXIR Fixed Bullet Explosion-Proof Network Camera
- Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
- 316L stainless steel enclosure and anti-corrosion spray treatment, protecting the camera from damage caused by sparks or corrosive materials
- IP68/IK08 water resistant and vandal proof, preventing water ingress for outdoor use
- H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
- 100 VAC to 240 VAC wide range power supply: easy to deploy cables and safer compared to a power adapter solution
Available models:
DS-2XE6222F-IS(12mm)(D)
DS-2XE6222F-IS(4mm)(D)
DS-2XE6222F-IS(6mm)(D)
DS-2XE6222F-IS(8mm)(D)
- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.018 lux @ (F1.2, AGC ON), B/W: 0.006 lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 4 , 6 , 8 , and 12 mm optional
- Focal Length & FOV4 mm, horizontal FOV 83°, vertical FOV 43°, diagonal FOV 97°
6 mm, horizontal FOV: 50°, vertical FOV 27°, diagonal FOV 59°
8 mm, horizontal FOV 39°, vertical FOV 21°, diagonal FOV 45°
12 mm, horizontal FOV 24°, vertical FOV 14°, diagonal FOV 28° - Lens MountM12
- ApertureF1.6
- DORI
- DORI4 mm:
D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
6 mm:
D: 88.3 m, O: 35 m, R: 17.7 m, I: 8.8 m
8 mm:
D: 110.3 m, O: 43.8 m, R: 22.1 m, I: 11 m
12 mm:
D: 171 m, O: 67.9 m, R: 34.2 m, I: 17.1 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) - Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) - Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) - Video Compression Main stream: H.265/H.264/H.265+/H.264+
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG - Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile/main profile/high profile
- H.265 TypeMain profile
- Region of Interest (ROI)5 customized regions for each stream, and face dynamic tracking
- Target CroppingYes
- Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), PSIA, CGI, ISAPI
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Not recommended: Safari 11+, Edge
- Image
- Image SettingsRotate mode, saturation, brightness, contrast, etc., adjustable by client software or web browser
- Day/Night SwitchAuto/Schedule/Alarm Trigger
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC/3D DNR
- Privacy Mask8 programmable polygon privacy mask
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Interface
- Audio1 line in, 1 line out
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. - Alarm 1 alarm input, 1 alarm output
- Event
- Basic Event Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))
Scene change detection, audio exception detection - LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
- General
- Power100 VAC to 240 VAC, 0.15 A, 50/60 Hz, max. 7 W, terminal block
PoE: 802.3af, Class 3, 36 to 57 V, 0.3 to 0.2 A - MaterialStainless steel 316L
- Dimension202 mm × 174 mm × 172 mm (8.0″× 6.9″ × 6.8″)
- Package Dimension435 mm × 255 mm × 285 mm (17.1″ × 10″ × 11.2″)
- WeightApprox. 6.17 kg (13.60 lb.)
- With Package WeightApprox. 7.20 kg (15.87 lb.)
- Storage Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionMirror, anti-flicker, heartbeat, watermark, password protection, privacy mask
- Cable Length1.41 m (4.63 ft.)
- Approval
- EMCFCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3:2013)
IC: IC-VoC (ICES-003 Issue 7: 2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) - SafetyUL (UL 60950-1:2014, CAN/CSA C22.2 No. 60950-1-07: 2014)
CB (IEC 60950-1)
CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013) - Protection IK08 (IEC 62262:2002), IP68 (IEC 60529-2013)
- Explosion-Proof ProtectionATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68
IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68
For explosive gas atmospheres, the maximum surface temperature is 85°C;
For flammable dust atmospheres, the maximum surface temperature is 80°C;
IIC: for explosive gas atmospheres other than mines susceptible to firedamp;
For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
