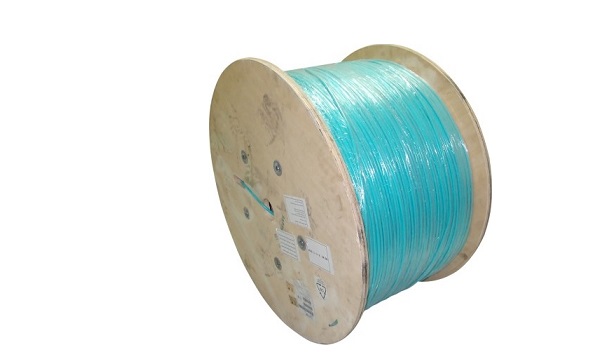

Cáp quang Indoor Multimode 12 lõi OM3 COMMSCOPE 3-1859420-3

Cáp quang Indoor Multimode 12 lõi OM3 COMMSCOPE 3-1859420-3

Part Number: 3-1859420-3

– Indoor Fiber Optic Cable, 12-fiber, OM3, OFNR, 3000m.

Specifications

Product Classification

– Portfolio: NETCONNECT®

– Product Type: Fiber indoor cable

– Regional Availability: Asia

Construction Materials

– Jacket Color: Aqua

– Total Fiber Count: 12

Signal Characteristics

– Attenuation, maximum (1300nm): 1.50dB/km

– Attenuation, maximum (850nm): 3.50dB/km

– Overfilled Launch Bandwidth (Min) (1300nm): 500 MHz-km

– Overfilled Launch Bandwidth (Min) (850nm): 1500 MHz-km

Cable Ratings

– Bend Radius (Installation): 124mm.

– Bend Radius (Unloaded): 62mm.

– Tensile Strength (Installation): 660.00N.

– Tensile Strength (Long Term): 198.00N.

– Crush resistance: 1000N/10cm

– Weight (Nominal): 32 kg/km.

Dimensions

– Length: 3000m.

Operation/Application

– Environment: Indoor

Usage Conditions

– Installation Temperature Range: -10 – 60 °C

– Operating Temperature Range: -20 – 70 °C

– Storage Temperature Range: -40 – 70 °C
