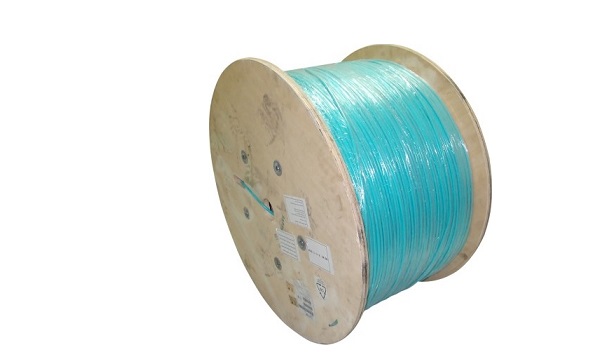

Cáp quang Indoor Multimode 8 lõi OM3 COMMSCOPE 1-1859419-3

Cáp quang Indoor Multimode 8 lõi OM3 COMMSCOPE 1-1859419-3

Part Number: 1-1859419-3

– Indoor Fiber Optic Cable, 8-fiber, OM3, OFNR, 1000m.

Specifications

Product Classification

– Portfolio: NETCONNECT®

– Product Type: Fiber indoor cable

– Regional Availability: Asia

Construction Materials

– Jacket Color: Aqua

– Total Fiber Count: 8

Body Features

– Bend Radius (Installation): 108.00mm

– Bend Radius (Long Term): 54.00mm

– Tensile Strength (Installation): 660.00N

– Tensile Strength (Long Term): 198.00N

– Weight (Nominal): 26.0 kg/km

Dimensions

– Length: 1000m.

Industry Standards

– Flammability Rating: OFNR (Riser) Jacket

Operation/Application

– Environment: Indoor

Product Type Features

– Armoring: None

– Cable Type: Fiber Optic

– Fiber Cable Buffering: Tight buffer

– Fiber Diameter: 50/125 µm

– Fiber Specification: TIA/EIA-598

– Fiber Type: OM3

– Optical Mode: Multimode

Signal Characteristics

– 10GbE Transmission Distance (Min) (850nm): 300.0m

– Attenuation, maximum (1300nm): 1.50dB/km

– Attenuation, maximum (850nm): 3.50dB/km

– Effective Modal Bandwidth (Min) (850nm): 2000 MHz-km

– Overfilled Launch Bandwidth (Min) (1300nm): 500 MHz-km

– Overfilled Launch Bandwidth (Min) (850nm): 1500 MHz-km

Usage Conditions

– Installation Temperature Range: -10 – 60 °C

– Operating Temperature Range: -20 – 70 °C

– Storage Temperature Range: -40 – 70 °C
