Cung cấp và lắp đặt Coax Converter HONEYWELL HLR1001 chính hãng, giá rẻ tại Hải Phòng

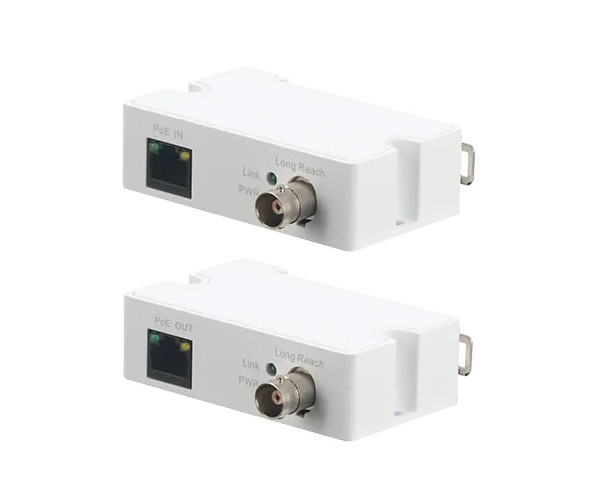

Coax Converter HONEYWELL HLR1001
– IP over Coax Converter is a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port.
– The product is equipped with two transmission modes which are 100Mbps and 10Mbps. It can be modified according to the transmission distance.
Thông số kỹ thuật
| Transmitter | HLR1001-T (connected to the camera) |
| Receiver | HLR1001-R (connected to the network) |
| Function port | 1*10/100 Mbit/s BASE-TX, 1*BNC |
| Power consumption | <2W |
| Transmission bandwidth | RG59 coaxial cable: 1312ft/400m: 100Mbps, 3281ft/1000m: 10Mbps |
| POE protocol | IEEE802.3af, IEEE802.3at |
| Network standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Lightning protection | Common Mode 4KV, Differential Mode 2KV |
| Operating temperature | -22°F~149°F (-30°C ~ 65°C) |
| Operating humidity | 5% ~ 95% |
| Weight | 61g |
| Dimension (W×D×H) | 79×52×23mm |
