Cung cấp và lắp đặt Explosion-Proof Terminal Box HIKVISION DS-2780ZJ-X/316L(OS) chính hãng, giá rẻ tại Hải Phòng

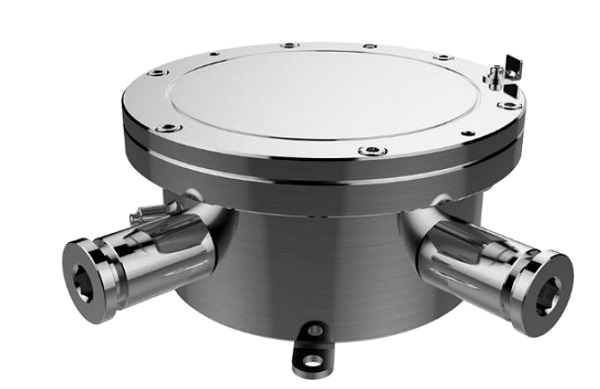

Explosion-Proof Terminal Box HIKVISION DS-2780ZJ-X/316L(OS)
– Stainless steel 304 and stainless steel 316L optional.
– Four cable outlets.
– ATEX and IECEx certified explosion-proof performance.
– Ingress protection, IP68.
Thông số kỹ thuật
| Material | Stainless steel 316L |
| Dimension | 272 × 272 × 96.8 mm |
| Weight | Approx. 6.4kg |
| Cable Outlet | 4 cable outlets, M25 × 1.5 |
| Operating Conditions | -40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing) |
| Hazardous Area | Zone 1, Zone 2, Zone 21, and Zone 22 |
| Ingress protection | IP68 |
| Interface | 110 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported) |
| Power Adapter Preinstalled | No |
| Wire Gauge | No. 22 to No. 12 AWG, max. 3.294 mm² |
| Applicable Device | Device that uses 110 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply |
